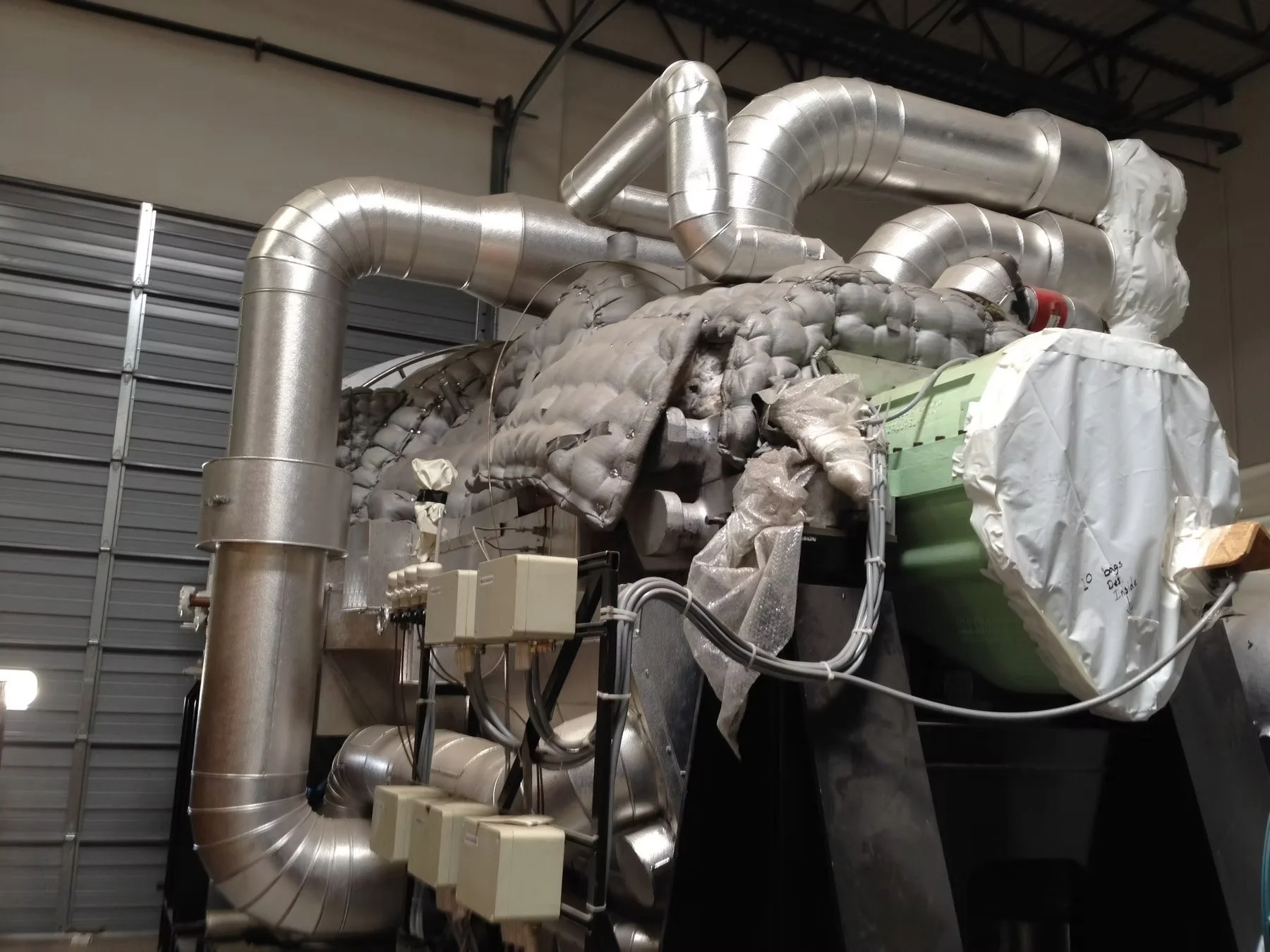

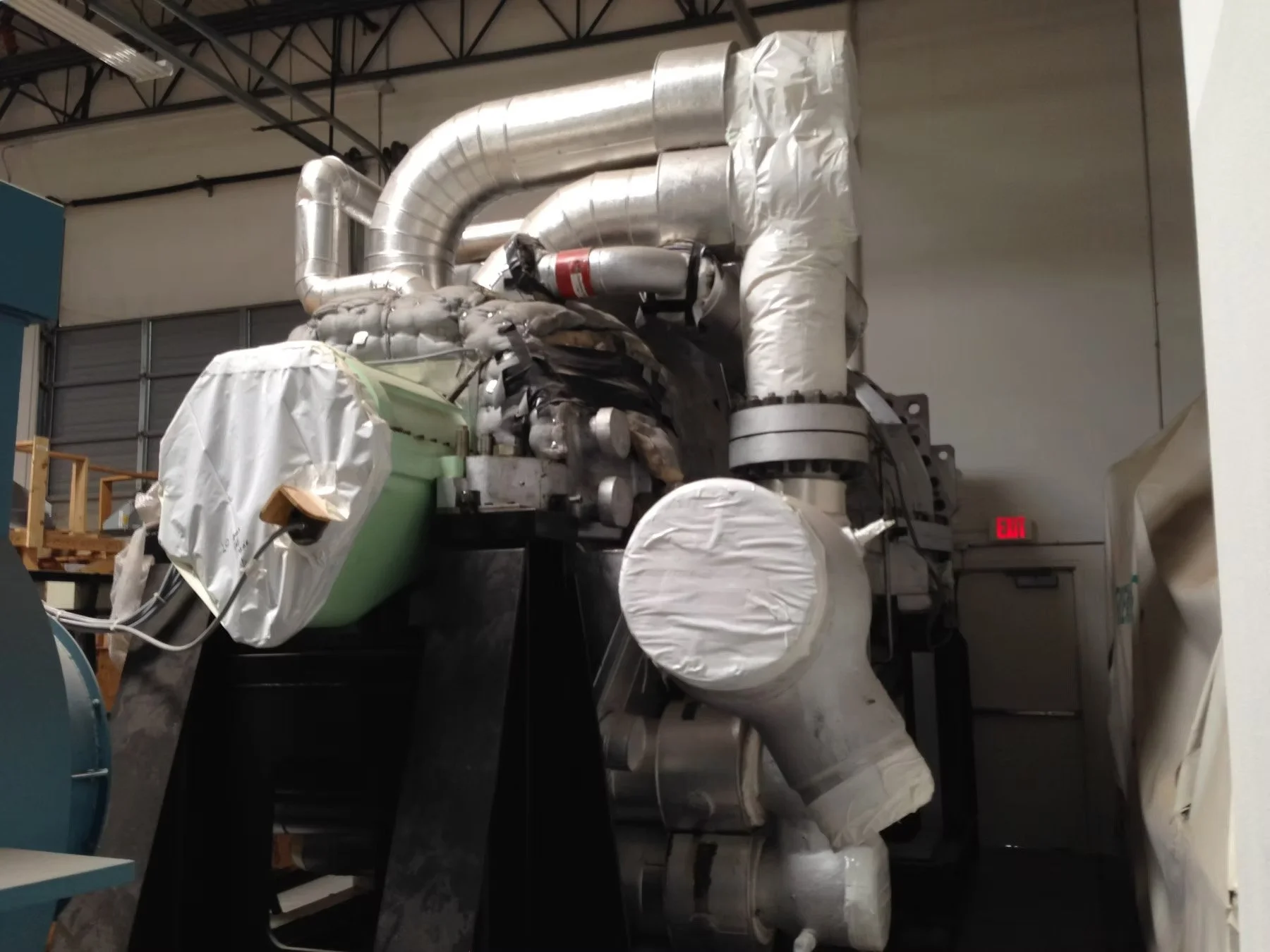

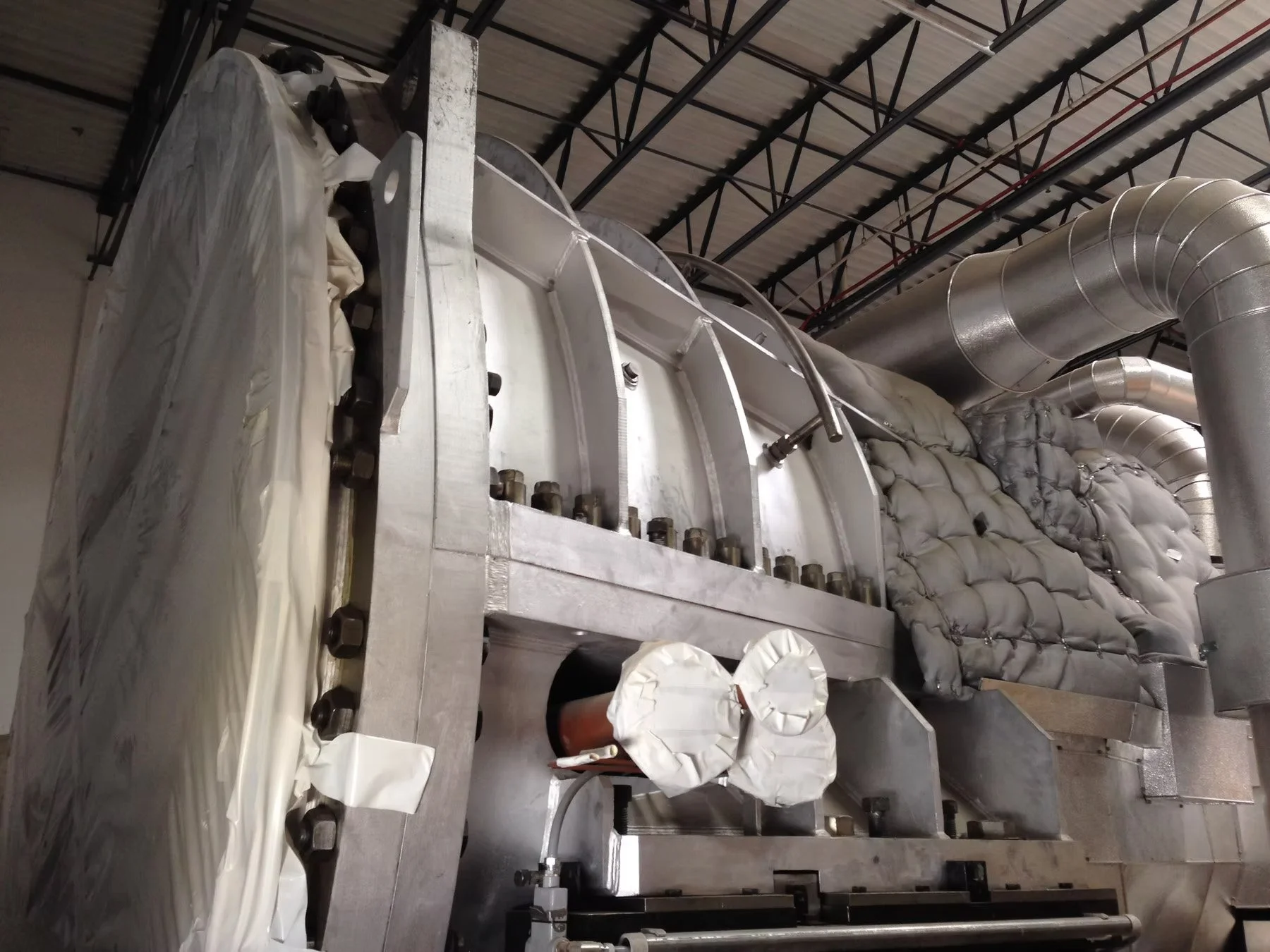

1 X SST-400 Siemens Steam Turbine Generator Package
STATUS
Available
SIZE (MW)
49.1
HOURS
0
OEM
Siemens
Description

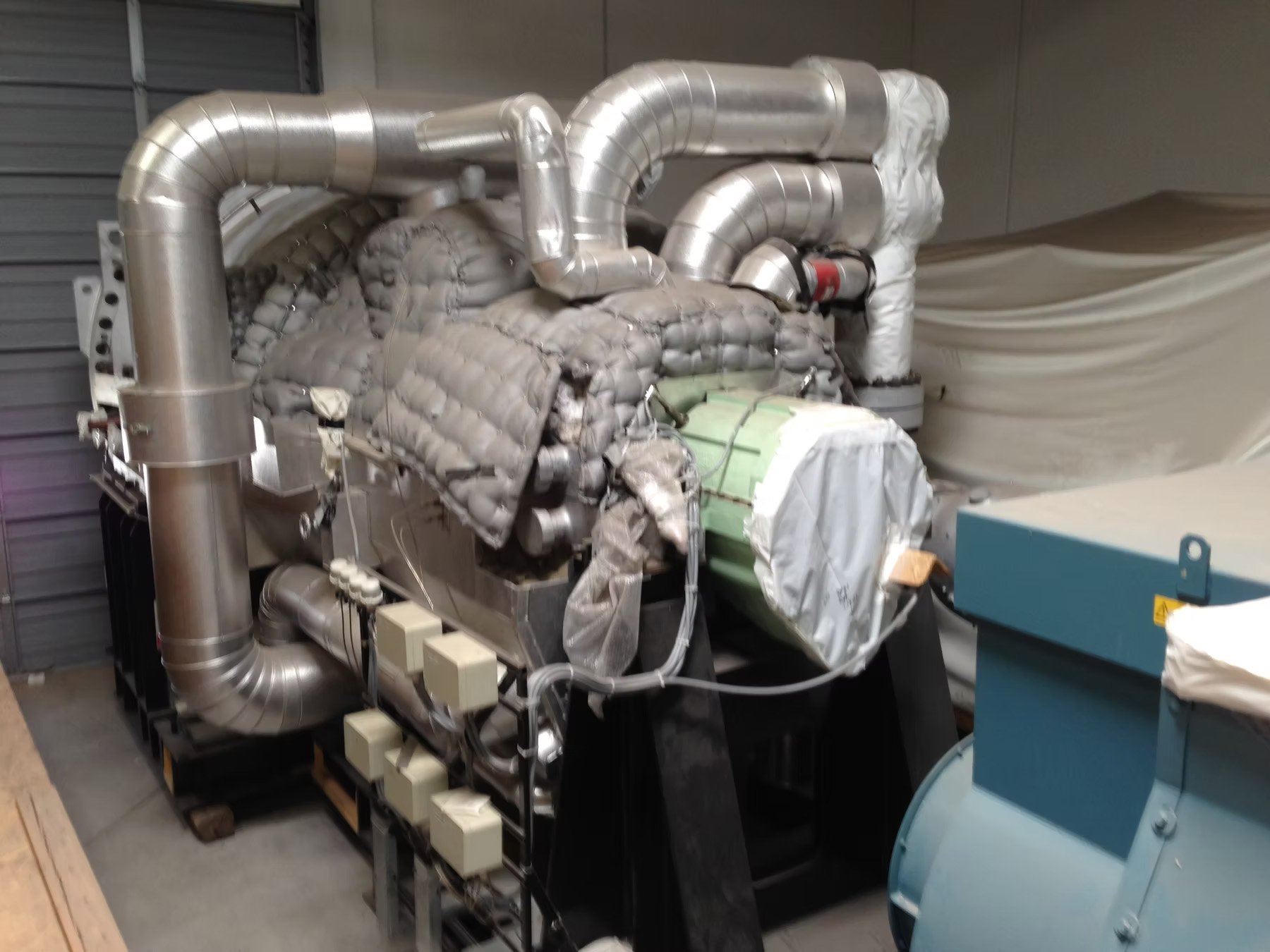

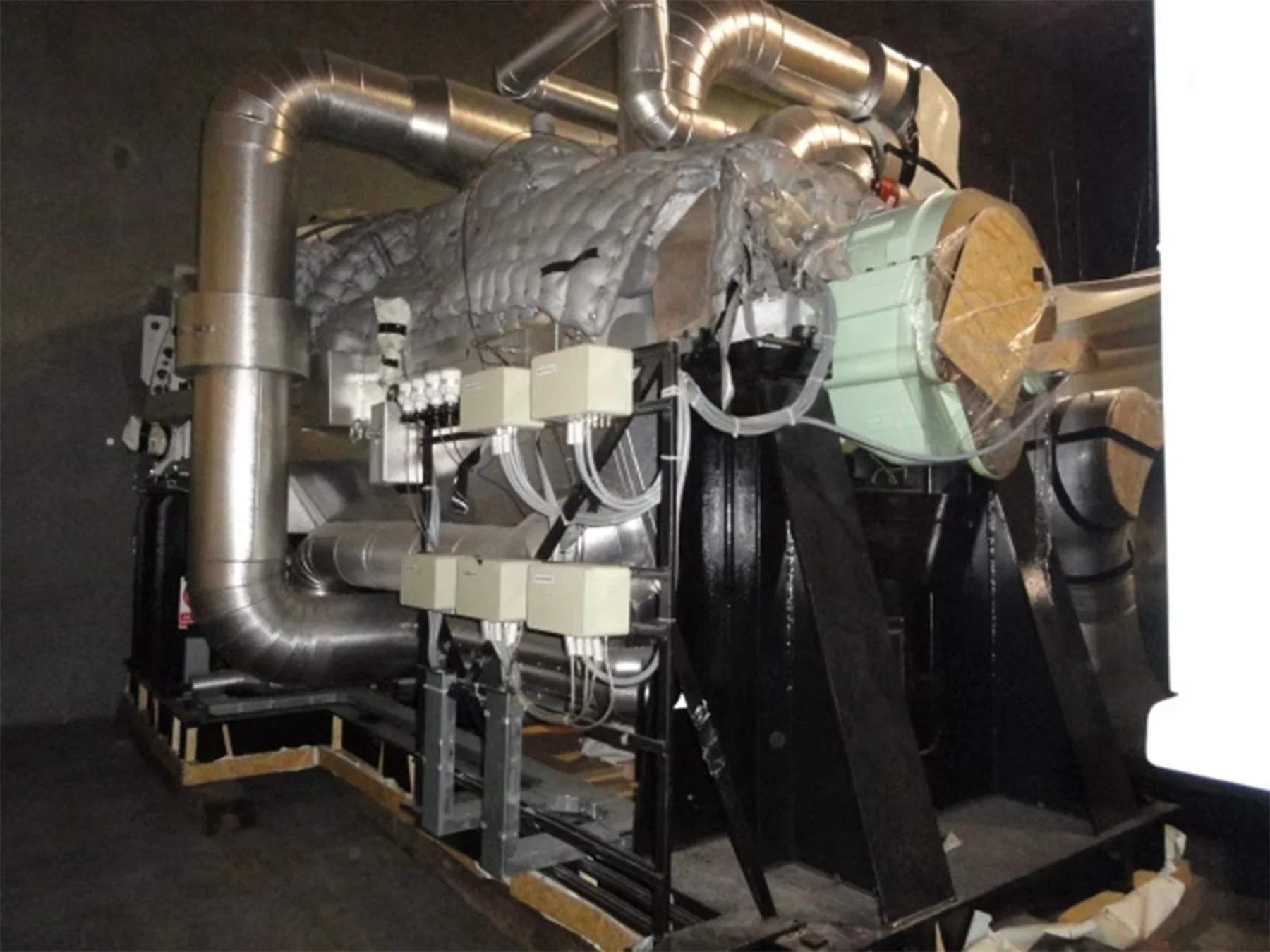

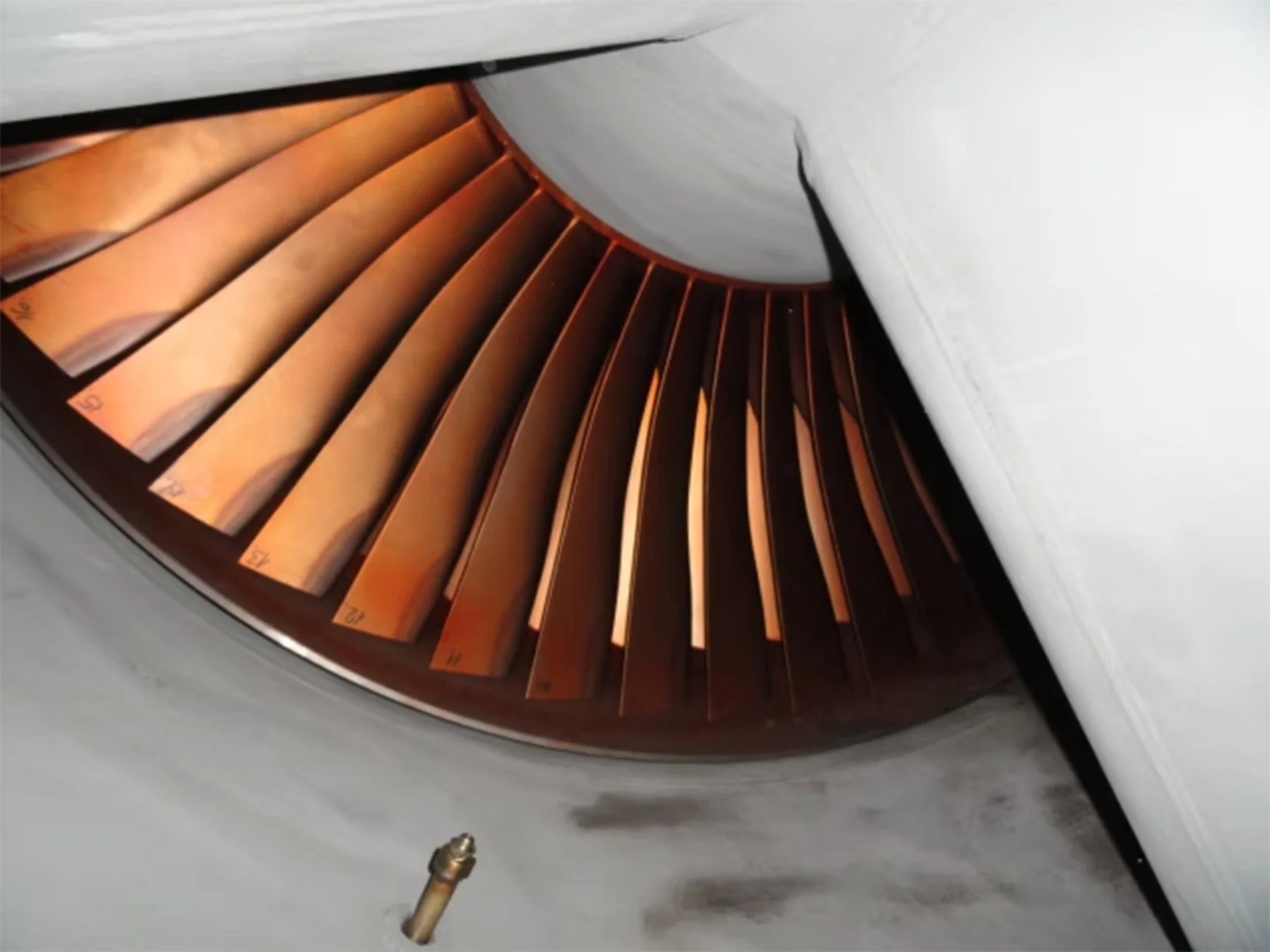

HP & LP Condensing Steam Turbine | Turbine Serial: 5721 | Nominal Rating: 49.1 MWe | Inlet Steam Pressure: 865 psia | Inlet Steam Temperature: 800°F | Turbine Op Speed: 5,143 rpm | 1 HP and 3 LP Controlled extractions | Exhaust pressure (condenser) in HgA – 1.2 to 6.0 | Back pressure / Condensing type | Pre-Engineered Turbine Modules | Modular Peripherals | Radial / Axial Exhaust | Semi-package Unit Design

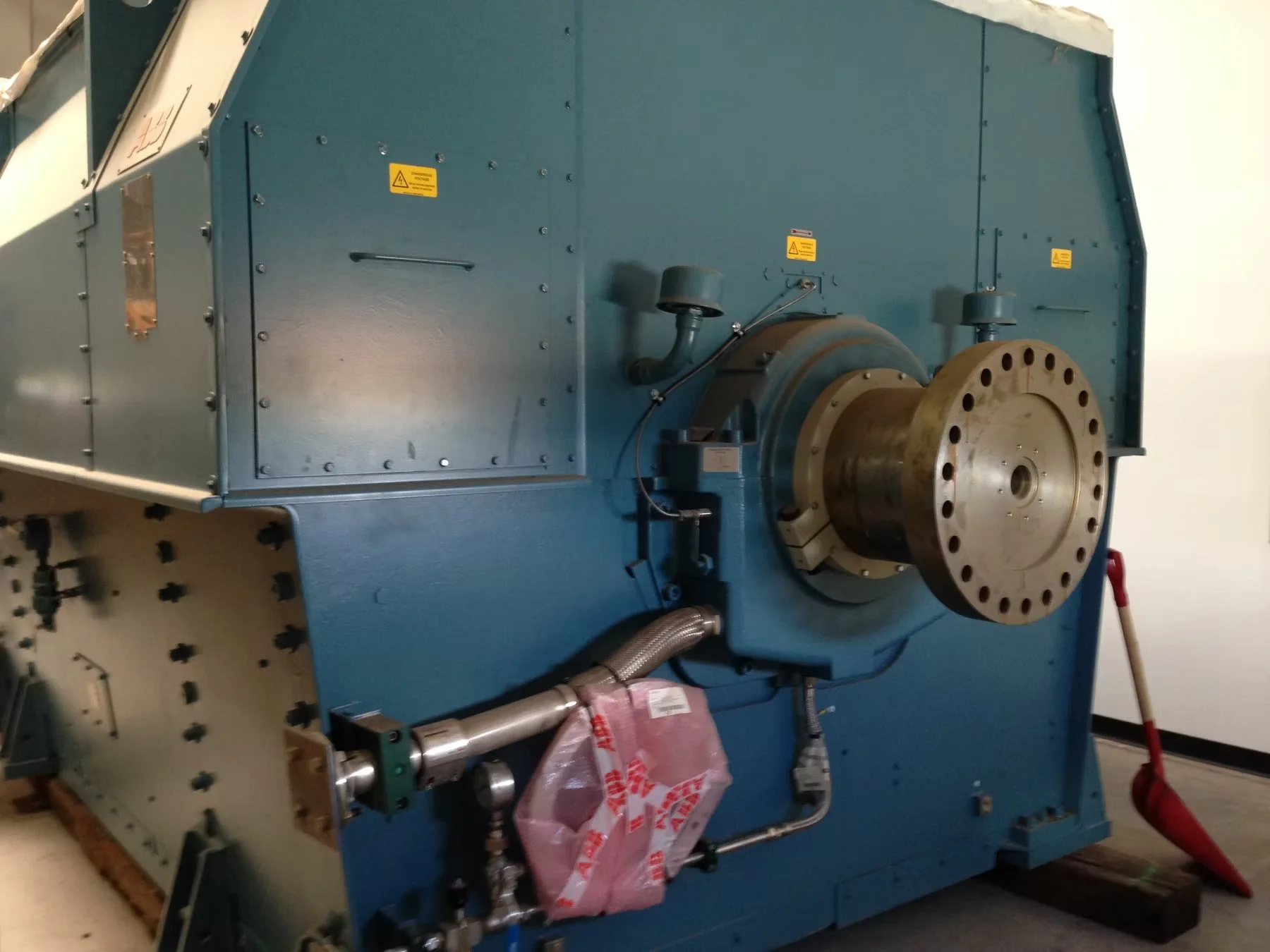

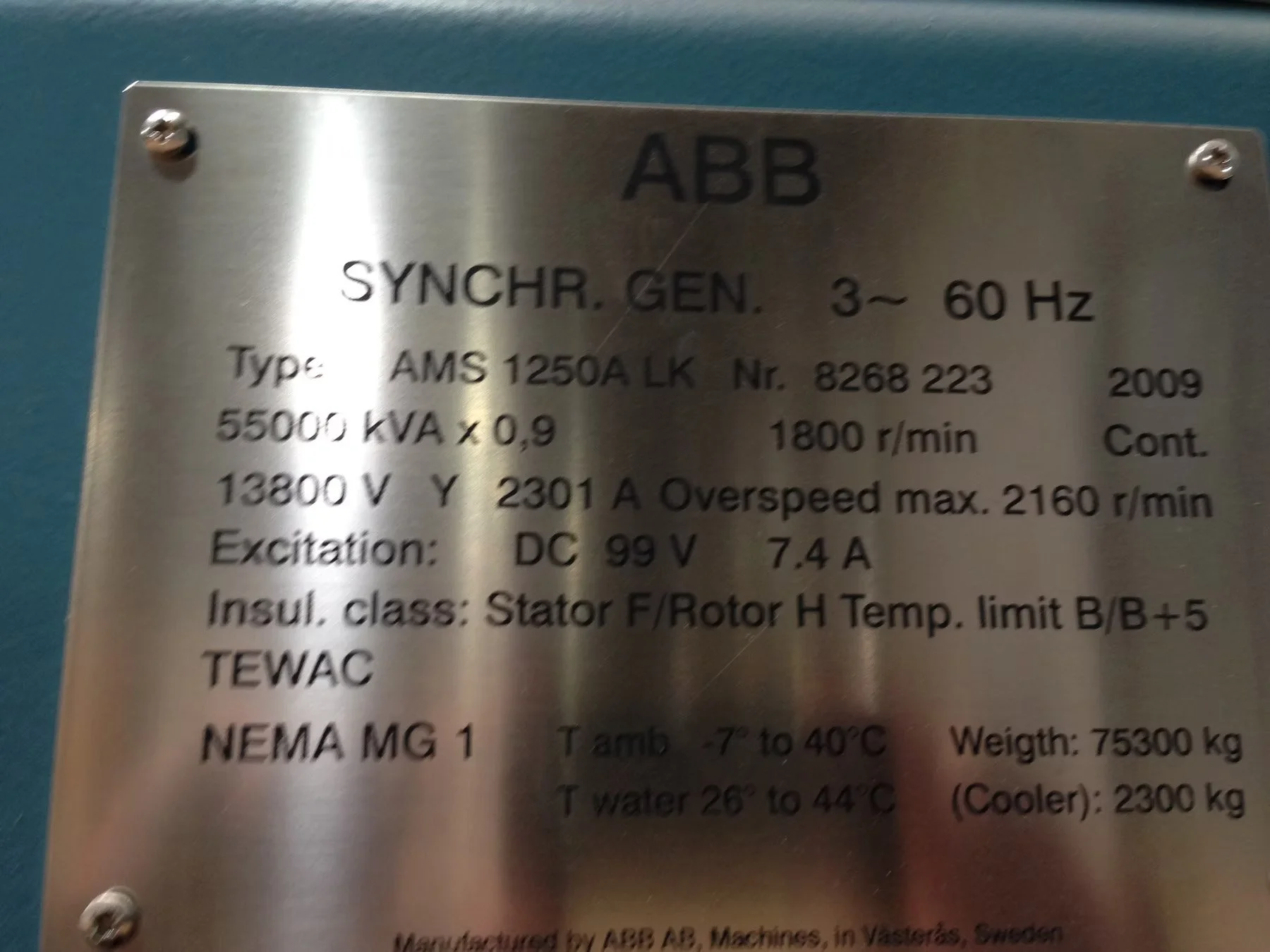

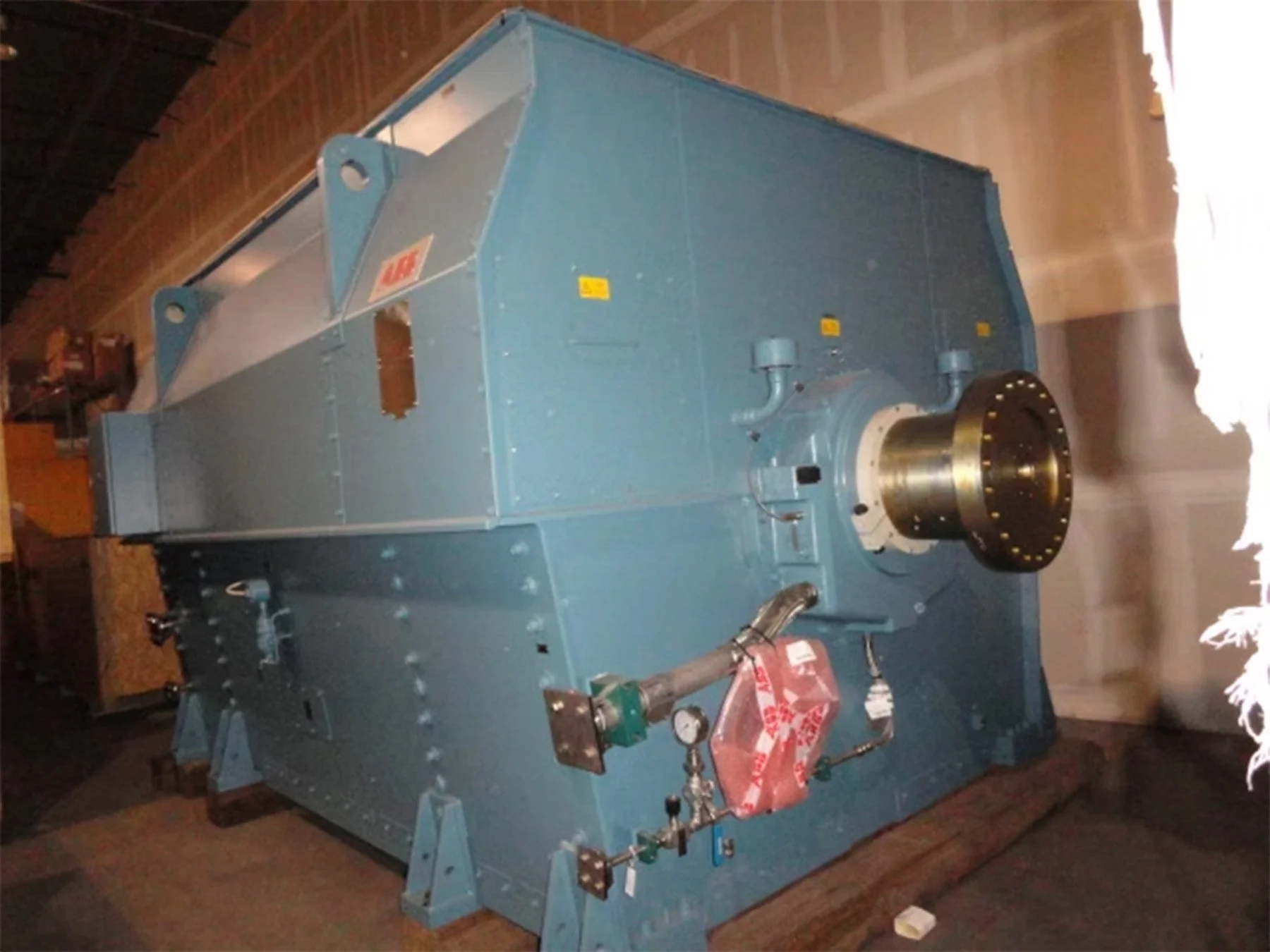

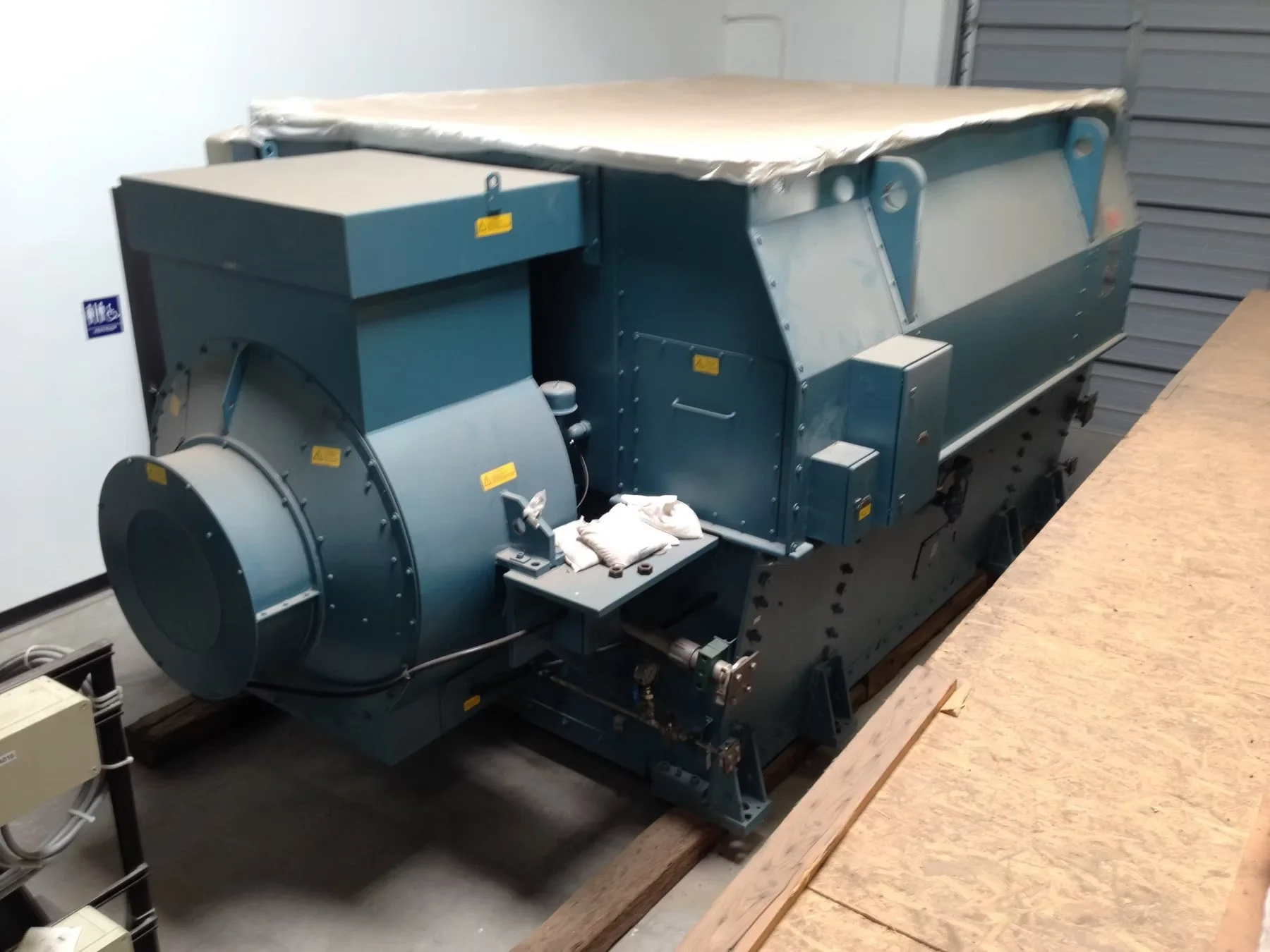

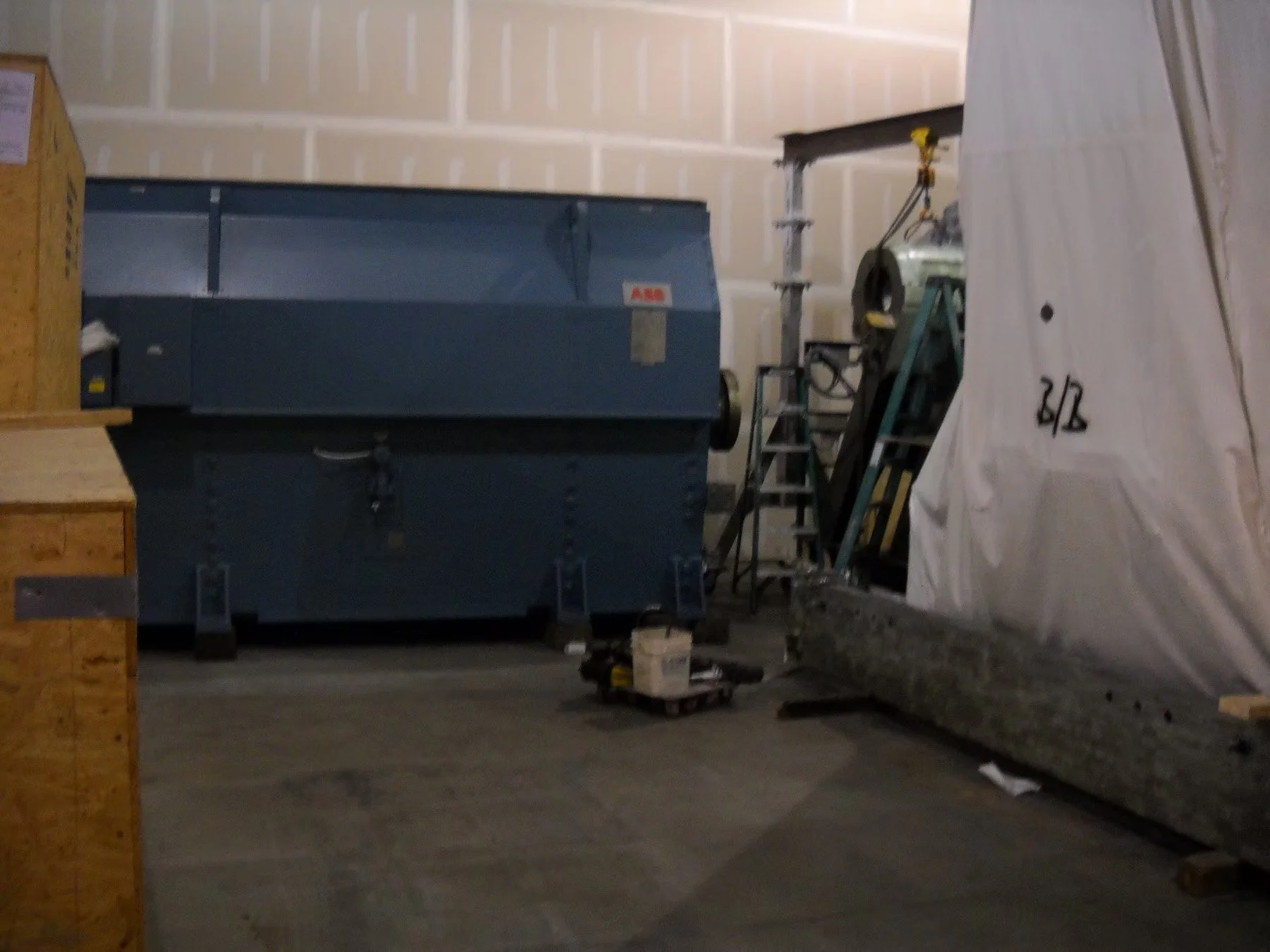

ABB Generator Serial: 8268 223 | Generator Max Capability 52.5 MVA at 13.2 kV, 3 phase, 60 Hertz | Generator Op Speed: 1,800 rpm
Details
ISO Rating (MW):
49.1
Status:
Available
Hours:
0
Condition:
New / Unused
Year:
2010
Frequency:
60Hz
Size (MVA):
49.1
